810 Screen Printing Machine
- User friendly control panel.
- Capability to print flat & cylindrical products.
- Approximately 3,600 prints per hour (depending on product).
- Top quality linear ball bearings rated at over 300 million cycles.
- Pneumatic systems cannot overload or burn out.
SYSTEMS TO SUIT YOUR APPLICATION & BUDGET
Not sure what you’re looking for?
Product Description
1st Place in Graphics Golden Image Award
English Data Sheet | Spanish Data Sheet

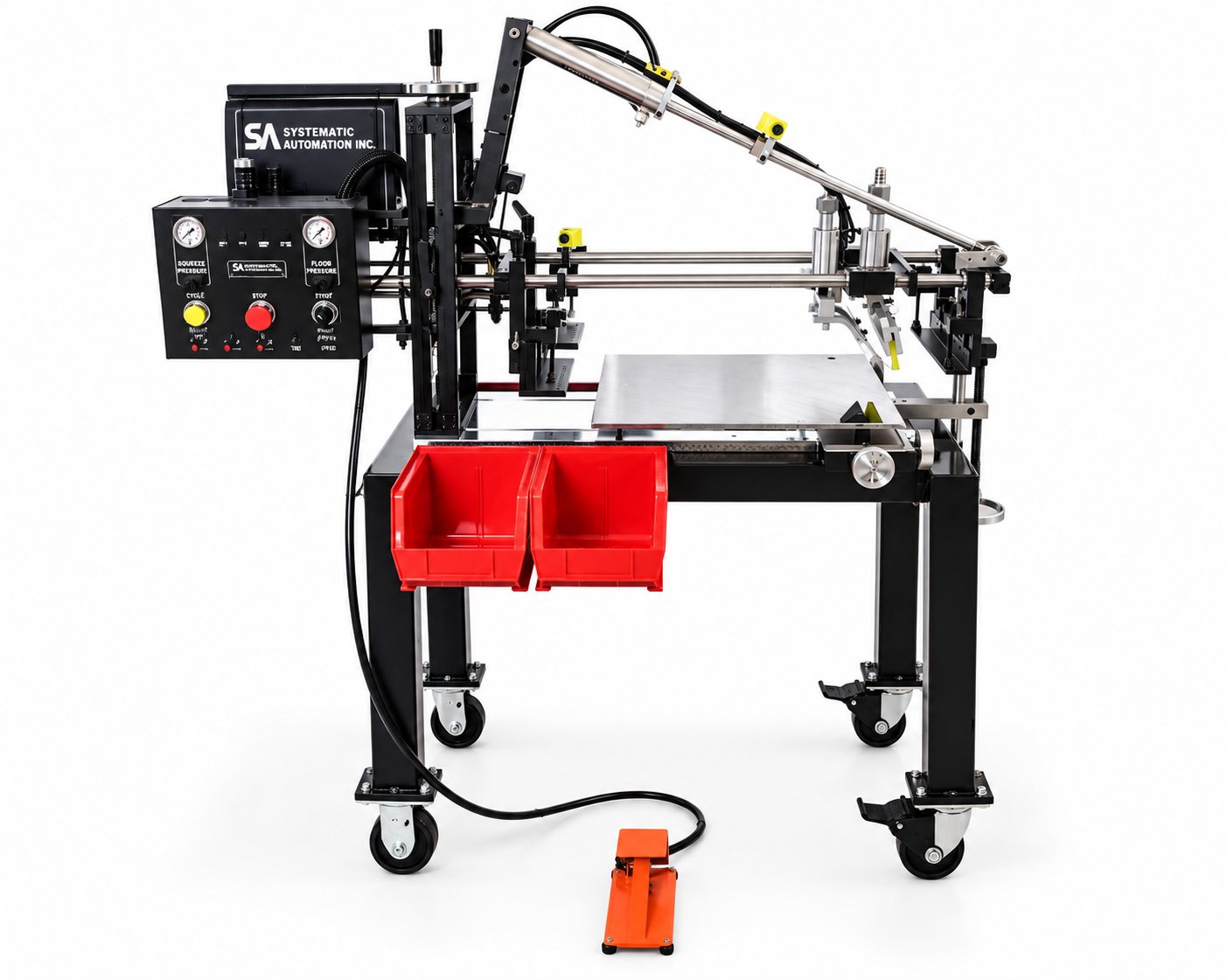

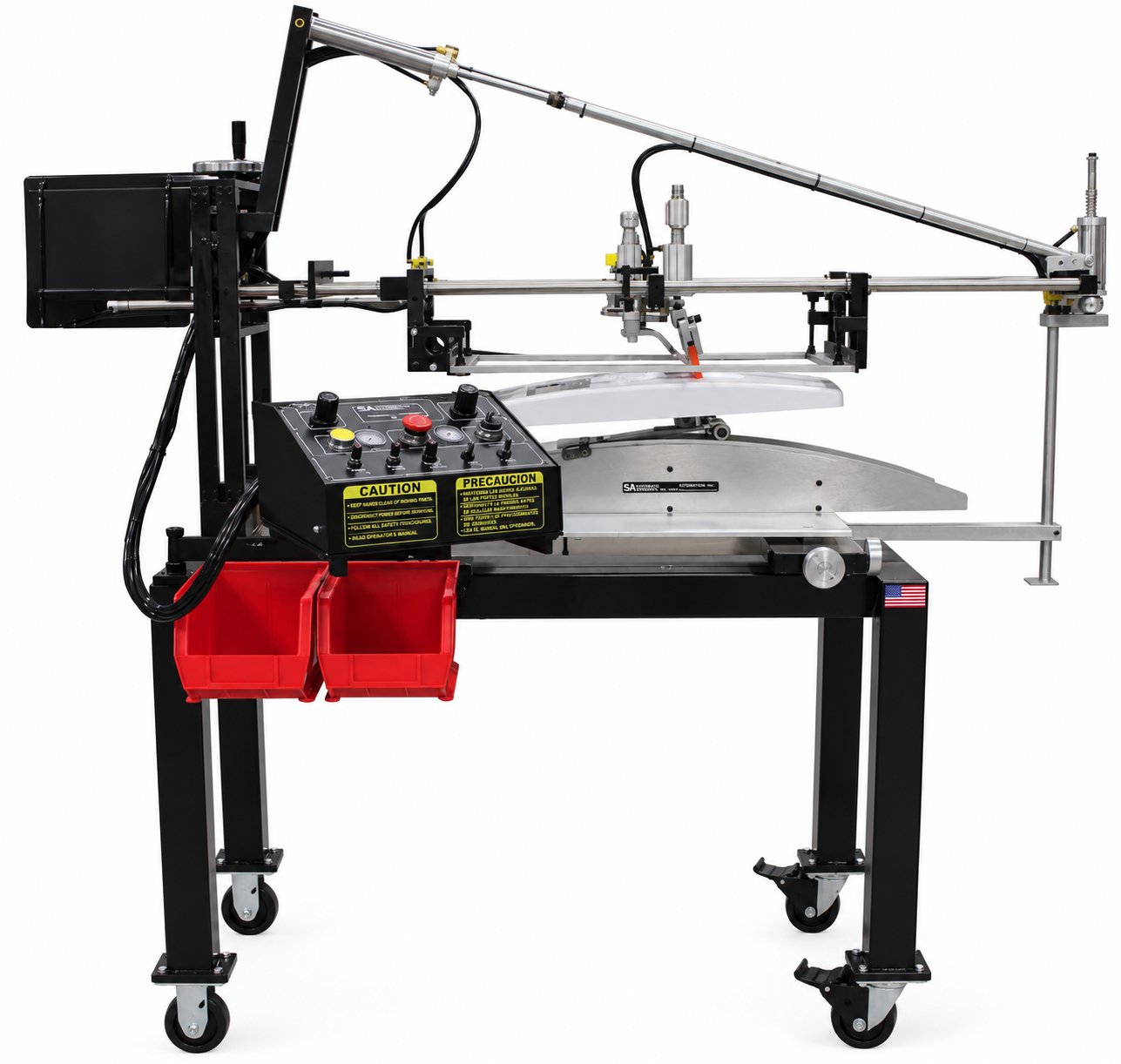

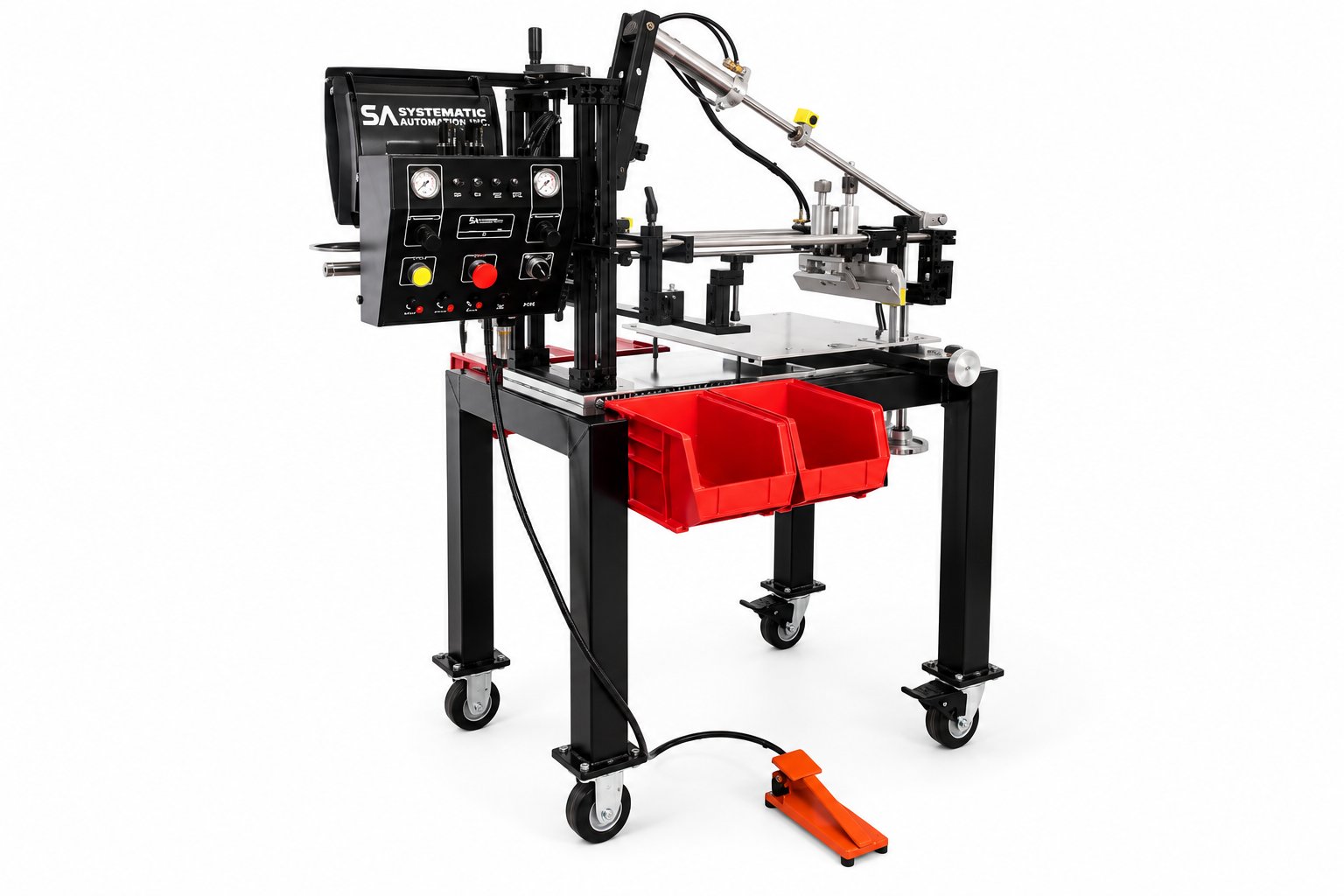

The Model 810 is the heart of all Systematic Automation screen printers. This semi-automatic clamshell printer has a production rate of up to 3,600 cycles per hour, and features a control panel for easy operator access to adjustable parameters. The clamshell style allows the operator faster access to the product, which means more production capacity than vertical lift printers. The 100% pneumatic operation has no electrical parts that will burnout or overload. The Model 810 can be run in automatic or single cycle mode.
The Model 810 operation can not get any simpler to learn. The machine design remains essentially unchanged in its over 30 years of production. Over this period the Model 810 has become the industry standard for ad specialty, plastics, medical, glassware, ceramics, electronics, and many other applications.
Features
Screen Printing Koozie Features
- Machine tool quality and durability.
- Capability to print flat & cylindrical products.

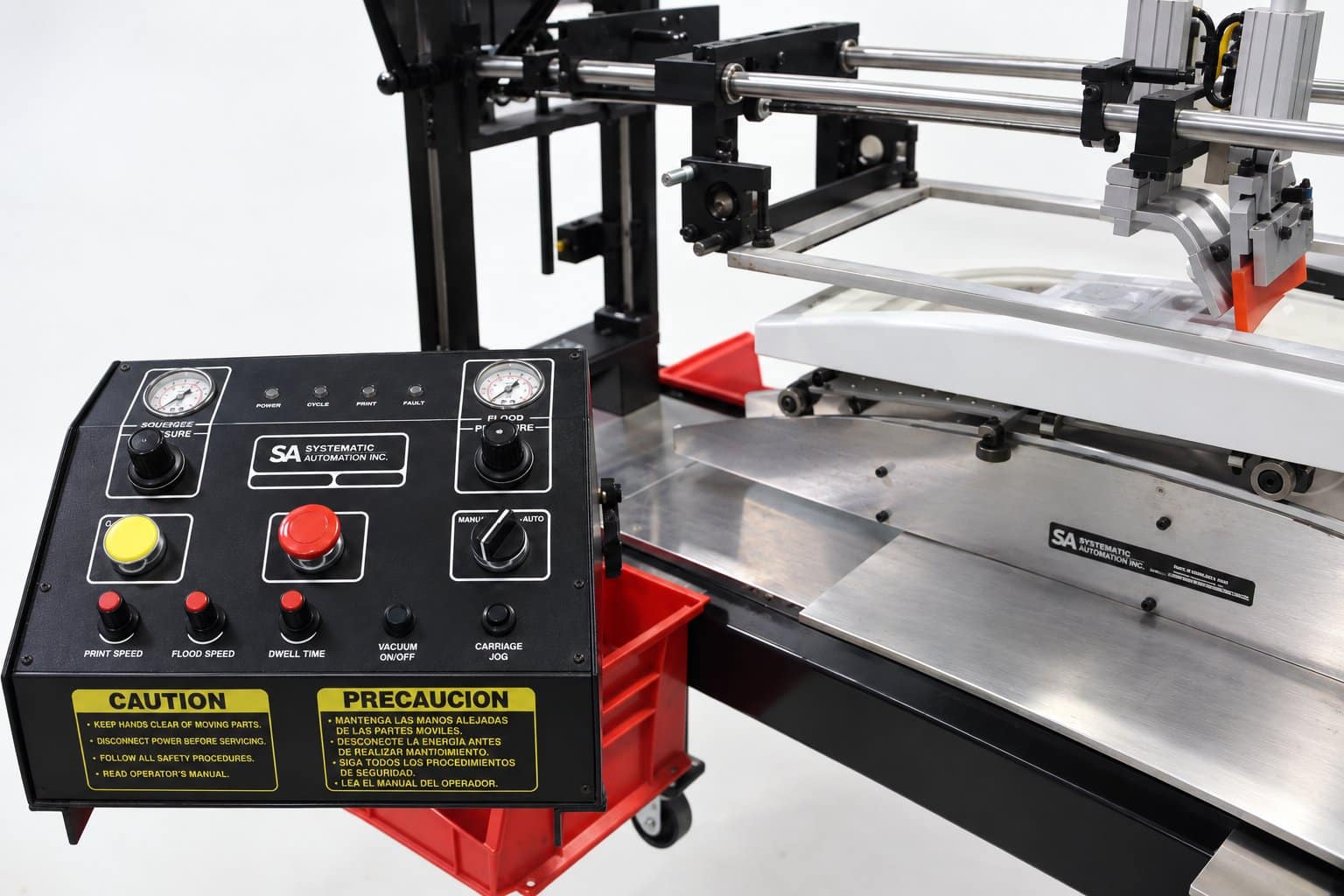

- User friendly control panel.
- Stainless steel air cylinders.
- Aluminum tooling plate base ground flat withing +/- .001″ (.025mm).
- Hardened ground and polished shafts with linear ball bearings rated at over 300 million cycles.
- 100% air operational.
- Pneumatic systems cannot overload or burn out.
- Carriage closes with minimal force for operator safety.
- Variable stroke length.
- Universal screen mount.
- Rear screen frame holder is hinged providing quick access to inside of screen and squeegee.
- Easily removable squeegee/flood bar assembly.
- Smooth, quiet operation.
Standard Features
- Heavy-duty X-Y and angular microadjust table.
- Heavy-duty welded steel base with casters and tote bins.
- Squeegee holder.
- Flood bar.
- Independent squeegee/flood bar micro height adjustment.
- 1/2″ (12mm) thick tooling plate for X-Y table ground flat to +/- .001″ (.025mm).
- Foot pedal cycle start.
- Stroke counter.
Options

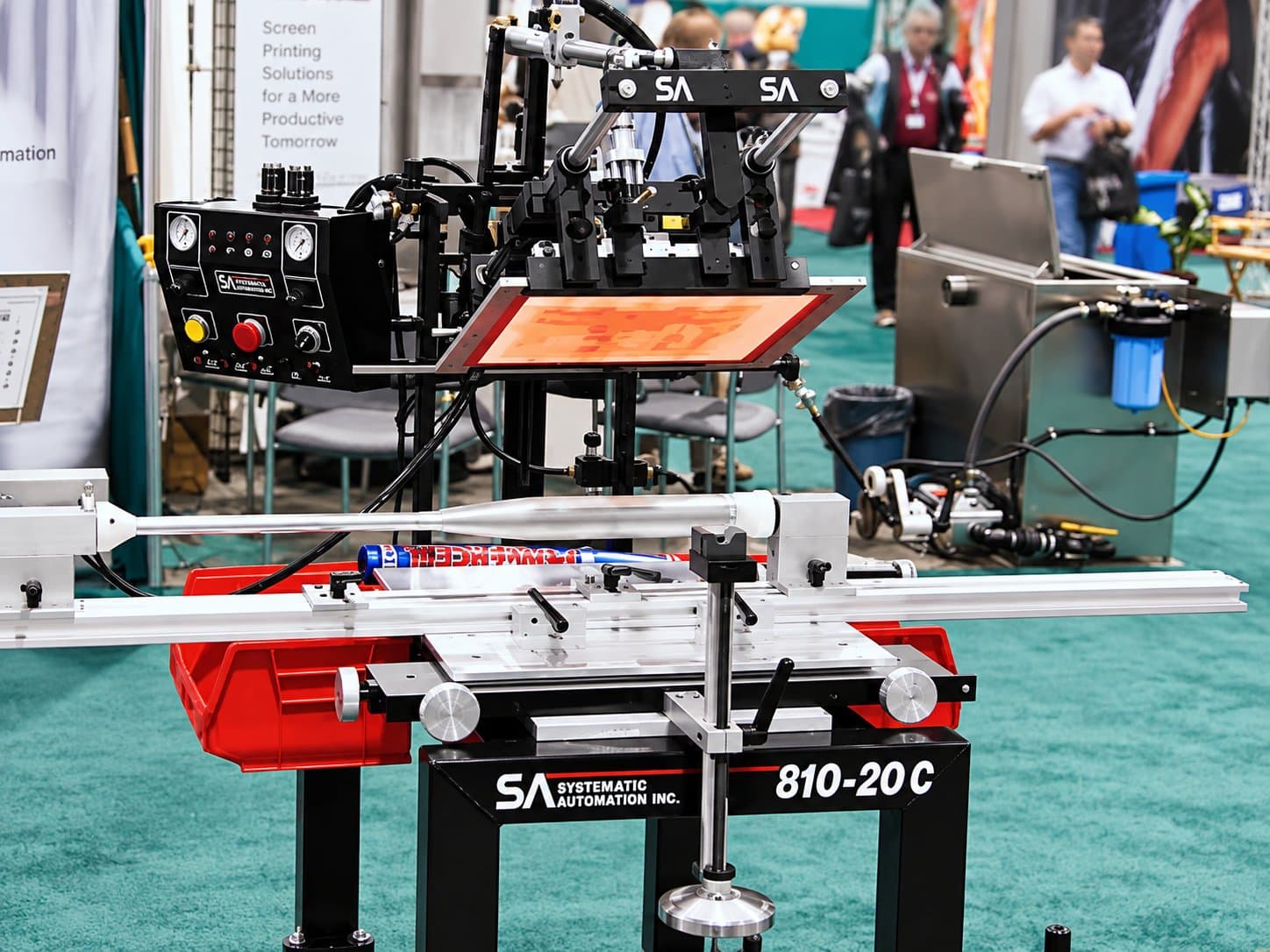

- Cylindrical printing capability.
- Three precision dial indicators mounted on X, Y and angular micro adjustable table.
- Off contact precision dial indicator.
- Dual print head for precise squeegee pressure for images 16” (406 mm) or wider.
- Adjustable squeegee angle.
- Control panel swivel arm.
- Vacuum table (+/-.001″ flatness per linear foot).
- Automatic Ink Dispenser.
Typical Applications
- Molded plastics
- Baseball Bats
- Glass and ceramics
- Membrane switches
- Nameplates
- Labels
- Panels
- Woods
- Cosmetic containers
- Medical devices
Accessories: Universal Wareholder
The universal wareholder’s largest benefit is its versatility in being suitable for a variety of different shaped drinkware. Typically you would need a specific fixture designed for each part. The cylindrical product sits on adjustable rollers that can accommodate almost any cylindrical shape.
When screen printing cylindrical products, you want your product to be parallel to the screen. Tapered products, such as pint glasses would typically not be ideal for rollers, however, our tooling has independent rollers for each end of the product, allowing you to easily adjust your product to be parallel to the screen. Even products that have odd-shapes such as a wine glass can have rollers as a reliable fixture.
