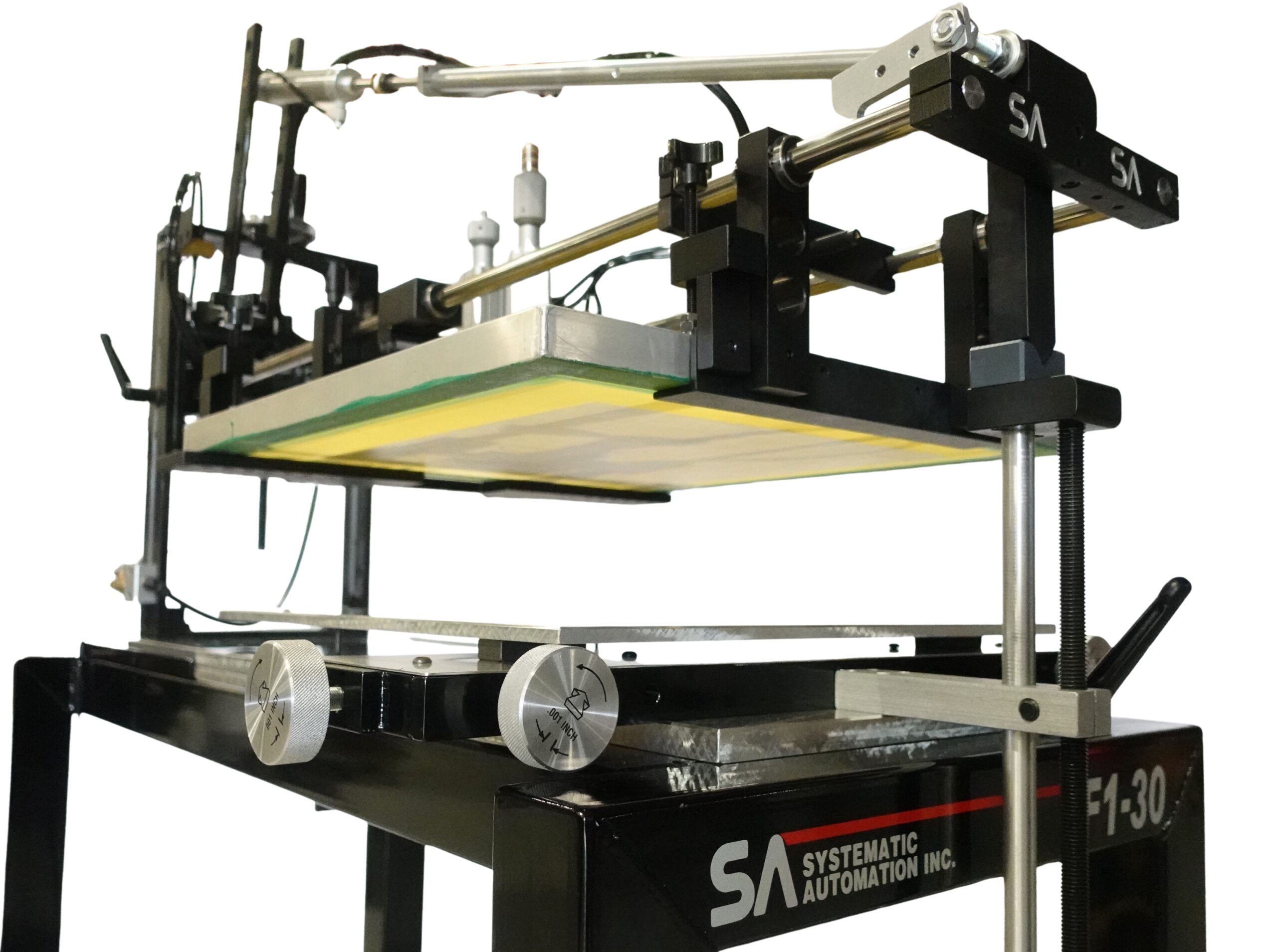

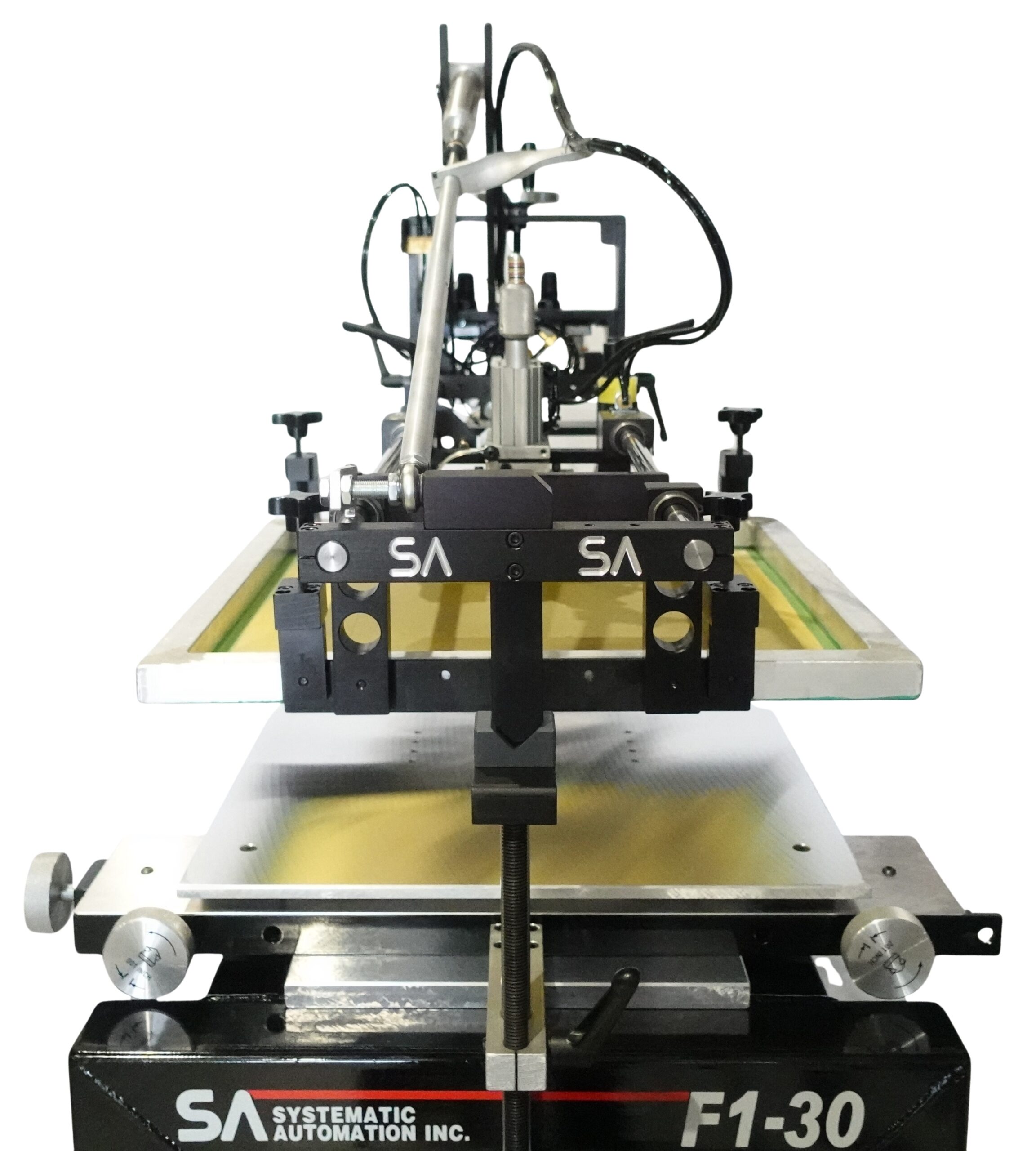

F1 Screen Printing Machine
- Approximately 3,600 prints per hour (depending on product).
- Aluminum tooling plate base ground flat within +/- .001” (.025 mm).
- Capability to print flat & cylindrical products.
- Pneumatic system cannot overload, burn out, or become obsolete.
SYSTEMS TO SUIT YOUR APPLICATION & BUDGET
Not sure what you’re looking for?
Product Description
The Right Solution For Every Industry
English Data Sheet | Spanish Data Sheet | Manual
• Proven Industry Solution: The Systematic Automation Model F1 Semi-Automatic is renowned for its high-quality manufacturing, user-friendly design, and precision performance, making it ideal for a wide range of screen-printable products, regardless of shape or material.
• Versatile and Reliable: The F1 printer easily switches between flat and cylindrical products in minutes, offering unparalleled versatility and dependability for long-term use. Engineered and manufactured in the USA, the F1 series meets the highest production standards.
• Modular Design for Growth: With hundreds of attachment combinations, the F1 can adapt to your future needs. Modular components allow for easy upgrades to accommodate increased production and customization.
• Dependable: The Model F1 is dependable due to its proven design, built with high-quality materials and over 40 years of engineering expertise, ensuring consistent precision performance and reliability for long-term, heavy-duty use in various screen printing applications.
• Expert Assistance: Whether you’re a beginner or experienced in screen printing, the F1 offers ease of use, precision, and customization to enhance your setup, cleanup, and imaging process. Our team is ready to assist with troubleshooting and support.
Benefits of Pneumatic Systems
Cost Efficiency
- No Electronic Obsolescence
- Stable Component Pricing
- Reduced Maintenance Costs
- Minimal Downtime
Supply Chain Security
- USA-Made Parts Available
- No Semiconductor Reliance
- Tariff Immunity
- Reliable Supply Network
Features
Screen Printing Koozie Features
- 100% manufactured in USA.
- Capability to print flat & cylindrical products.
- Independent flood bar & squeegee speed/height adjustment.
- Universal screen mounting.

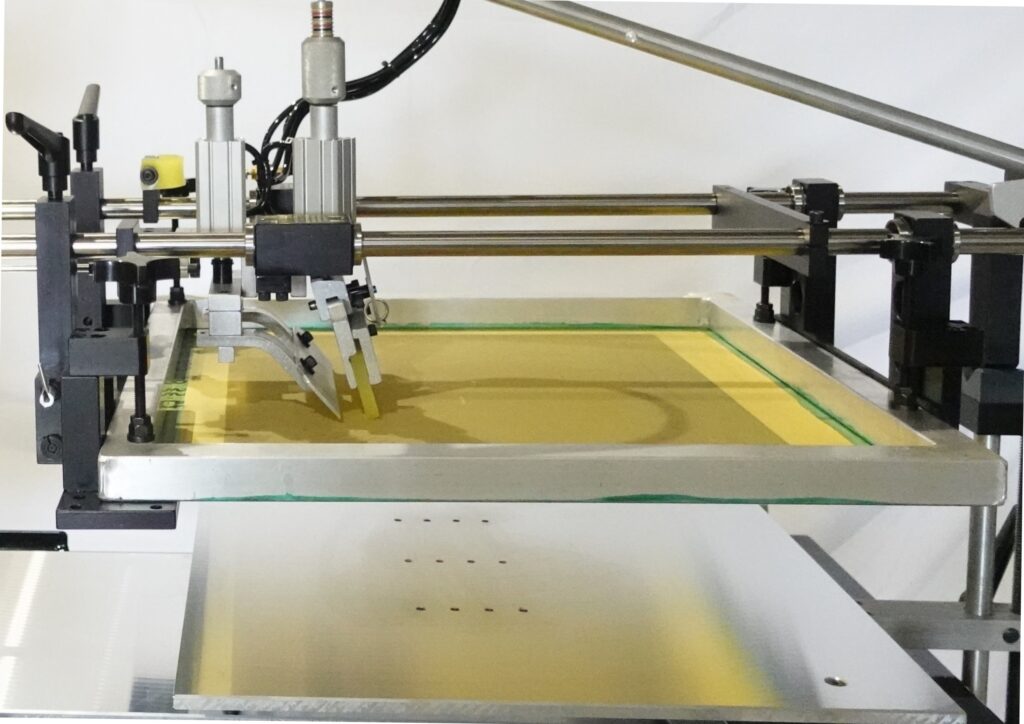

- Hinged rear screen frame holder to provide quick access to screen, squeegee and flood bar without losing registration.
- Quick release squeegee holder and flood bar assembly.
- Aluminum tooling plate base ground flat within +/- .001” (.025 mm).
- Micro-adjust knobs located on X,Y location of tooling plate.
- Smooth, quiet operation.
- 100% air operation.
- Pneumatic system cannot overload, burn out, or become obsolete.
- Machine tool quality and durability.
- Stainless steel air cylinders.
- Hardened, ground, and polished shafts with linear ball bearings rated at over 300 million cycles.
- Carriage closes with minimal force for operator safety.
Standard Features
- Variable flood bar speed.
- Adjustable print stroke length.
- Variable carriage down speed.
- Adjustable squeegee pressure with gauge and regulator.
- Foot pedal cycle start.
- Adjustable screen lift height.
- Print/flood cycle – machine “waits” in flood position.
- Air shut-off switch.
- Heavy-duty X, Y, and angular micro adjust table.
- Heavy-duty welded steel base with casters and tote bins.
- Squeegee holder.
- Independent squeegee/flood bar micro height adjustment.
Options
- Cylindrical printing capability.
- Three precision dial indicators mounted on X, Y, and angular micro adjustable table.
- Adjustable squeegee pressure with gauge and regulator.
- Off contact precision dial indicator.
- Dual print head for precise squeegee pressure for images 16” (406 mm) or wider.
- Adjustable squeegee angle.
- Flood/print cycle replaces standard print/flood cycle.
- Automatic Ink Dispenser.
- Screen Tension Meter.
- Vacuum table.
